Click Specification

Cup Square Bolts

CNS 4424 - 1981

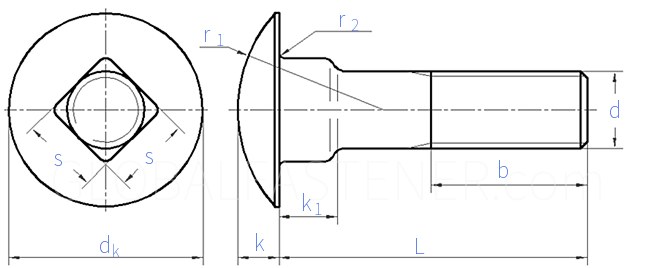

Display drawing:

台湾CNS 4424 - 1981 CNS4424 4424CNS Cup Square Bolts
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M5 M6 M8 M10 M12 M16 M20
P Pitch
b L<120
130<L<200
dk
k
s
k1
0.8 1 1.25 1.5 1.75 2 2.5
16 18 22 26 30 38 46
22 24 28 32 36 44 52
13 16 20 24 30 38 46
3 3.5 4.5 5 6.5 8.5 10.5
5 6 8 10 12 16 20
3.5 4 5 6 8 12 15
Weight of per 1000 steel products(≈kg)
- - - - - - -
