Hexagon Bolts with Reduced Head and Guide Neck, Precision Class B, Type 3

GOST 7795 (Type 3) - 1970

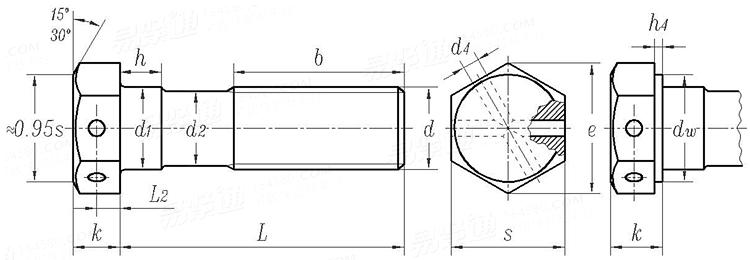

Display drawing:

俄标GOST 7795 (Type 3) - 1970 GOST7795 779 Hexagon Bolts with Reduced Head and Guide Neck, Precision Class B, Type 3
Nominal Length L Tips:seclect Nominal Length L and get Thread length.
Thread Size
d
M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 M36 M42 M48
P Coarse thread
Fine thread
d1 max=nominal size
min
h min
s
k
e min
dw
h4 max
min
d4 min=nominal size
max
L2 Nominal Size
min
max
1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 4 4.5 5
/ 1 1.25 1.25 1.5 1.5 1.5 1.5 1.5 2 2 2 3 3 3
6 8 10 12 14 16 18 20 22 24 27 30 36 42 48
5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48 21.48 23.48 26.48 29.48 35.38 41.38 47.38
3 4 5 6 7 8 9 10 11 12 14 15 18 21 24
10 12 14 17 19 22 24 27 30 32 36 41 50 60 70
4.2 5.3 6.4 7.5 8.8 10 12 12.5 14 15 17 18.7 22.5 26 30
10.9 13.1 15.3 18.7 20.9 23.9 26.2 29.6 33 35 39.6 45.2 55.4 66.4 76.9
8.7 10.5 12.5 15.5 17.2 20.1 22 24.8 27.7 29.5 33.2 38 46.6 55.9 64.7
0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
0.15 0.15 0.15 0.15 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.25 0.25
2 2.5 2.5 3.2 3.2 4 4 4 4 4 4 4 5 5 5
2.4 2.9 2.9 3.68 3.68 4.48 4.48 4.48 4.48 4.48 4.48 4.48 5.48 5.48 5.48
2 2.8 3.5 4 4.5 5 6 6.5 7 7.5 8.5 9.5 11.5 13 15
1.8 2.6 3.26 3.76 4.26 4.76 5.76 6.21 6.71 7.21 8.21 9.21 11.15 12.65 14.65
2.2 3 3.74 4.24 4.74 5.24 6.24 6.79 7.29 7.79 8.79 9.79 11.85 13.35 15.35
Length of Thread b
- - - - - - - - - - - - - - -
