Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Hexagon Bolts with Reduced Head and Guide Neck, Precision Class B, Type 1

GOST 7795 (Type 1) - 1970

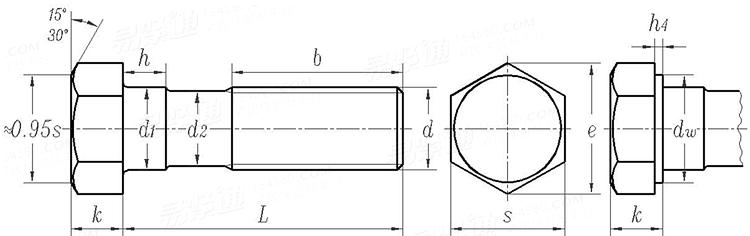

Display drawing:

俄标GOST 7795 (Type 1) - 1970 GOST7795 779 Hexagon Bolts with Reduced Head and Guide Neck, Precision Class B, Type 1
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight Thread length.
Thread Size
d
M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 M36 M42 M48
P Coarse thread
Fine thread
d1 max=nominal size
min
h min
s
k
e min
dw
h4 max
min
1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 4 4.5 5
/ 1 1.25 1.25 1.5 1.5 1.5 1.5 1.5 2 2 2 3 3 3
6 8 10 12 14 16 18 20 22 24 27 30 36 42 48
5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48 21.48 23.48 26.48 29.48 35.38 41.38 47.38
3 4 5 6 7 8 9 10 11 12 14 15 18 21 24
10 12 14 17 19 22 24 27 30 32 36 41 50 60 70
4 5 6 7 8 9 10 11 12 13 15 17 20 23 26
10.9 13.1 15.3 18.7 20.9 23.9 26.2 29.6 33 35 39.6 45.2 55.4 66.4 76.9
8.7 10.5 12.5 15.5 17.2 20.1 22 24.8 27.7 29.5 33.2 38 46.6 55.9 64.7
0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
0.15 0.15 0.15 0.15 0.15 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.25 0.25
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - - - - -
Length of Thread b
- - - - - - - - - - - - - - -
