Click Specification

Same specifications, different dimensions for other parts.

Unit:mm

Countersunk Head Knurled Plain Body Steel

YJT 8044

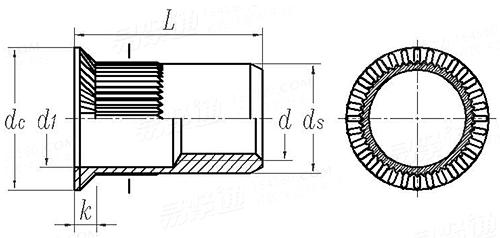

Display drawing:

企标YJT 8044 YJT8044 8044YJT Countersunk Head Knurled Plain Body Steel
Thread Size
d
M3 M4 M4 M5 M5 M6 M6 M6
ds +0.07, -0.12
dc ±0.3
k +0.3, -0.1
L ±0.3
d1 ±0.2
4.9 5.9 5.9 6.9 6.9 8.9 8.9 8.9
6.6 9 9 10 10 12 12 12
1.1 1.5 1.5 1.5 1.5 1.5 1.5 1.5
9.5 12 13.5 13 16.5 16 19 20.5
4 4.9 4.8 5.7 5.6 7.6 7.5 7.4
Thread Size
d
M8 M8 M8 M10 M10 M10 M12 M12
ds +0.07, -0.12
dc ±0.3
k +0.3, -0.1
L ±0.3
d1 ±0.2
10.9 10.9 10.9 12.9 12.9 12.9 15.9 15.9
14 14 14 16 16 16 19 19
1.5 1.5 1.5 1.5 1.5 1.5 2 2
18.5 21 23 21 25 27 26 29
9.6 9.5 9.4 11.5 11.4 11.3 14.1 14.1
