Click Specification

M10

M12

Same specifications, different dimensions for other parts.

Reduce Head Knurled Plain Body Steel

YJT 8043

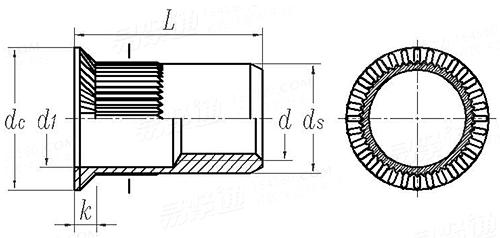

Display drawing:

Thread Size
d

d_s	+0.07, -0.12
d_c	±0.3
k	+0.3, -0.1
L	±0.3
d₁	±0.2

4.9	5.9	5.9	6.9	6.9	8.9	8.9	8.9
6.1	7	7	8	8	10	10	10
0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
9	10	13	11.5	13	14	17.5	19.5
4	4.8	4.7	5.8	5.7	7.6	7.5	7.4

Thread Size
d

M10

M12

d_s	+0.07, -0.12
d_c	±0.3
k	+0.3, -0.1
L	±0.3
d₁	±0.2

10.9	10.9	10.9	12.9	12.9	12.9	15.9	15.9
12	12	12	14	14	14	17.5	17.5
0.5	0.5	0.5	0.7	0.7	0.7	0.8	0.8
15.5	19.7	21	19.5	22	24	24	28
9.6	9.5	9.4	11.6	11.5	11.4	14.1	14.1
