Rolling bearins - Needle roller bearings - Thrust washers

DIN 5405 (-3) - 2016

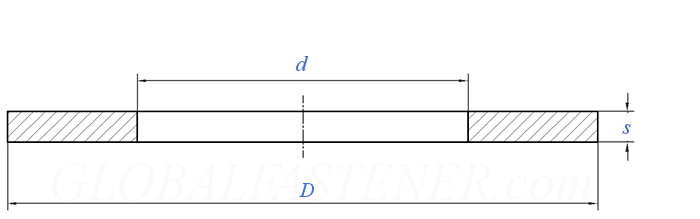

Display drawing:

德标DIN 5405 (-3) - 2016 DIN5405 5405DIN Rolling bearins - Needle roller bearings - Thrust washers
Nominal Diameter
d
4 5 6 8 10 12 15 17 20 25 30 35 40 45 50
D
s
14 15 19 21 24 26 28 30 35 42 47 52 60 65 70
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Nominal Diameter
d
55 60 65 70 75 80 85 90 100 110 120 130 140 150 160
D
s
78 85 90 95 100 105 110 120 135 145 155 170 180 190 200
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
