GB 815 - 1988 Round Nuts With Drilled Holes In One Face


Unit: mm

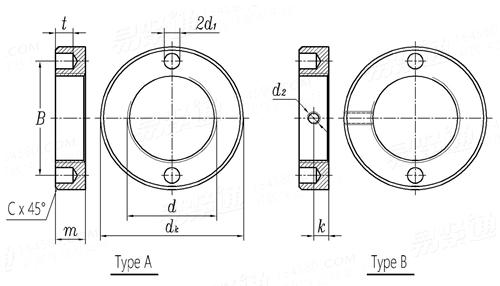

国标GB 815 - 1988 GB815 815GB Round Nuts With Drilled Holes In One Face
国标GB 815 - 1988 GB815 815GB Round Nuts With Drilled Holes In One Face
Thread Size
D
M2 M2.5 M3 M4 M5 M6 M8 M10
P Pitch
dk max
min
m max
min
d1
t
B
k
c
d2
per 1000 units ≈ kg
0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
5.5 7 8 10 12 14 18 22
5.32 6.78 7.78 9.78 11.73 13.73 17.73 21.67
2 2.2 2.5 3.5 4.2 5 6.5 8
1.75 1.95 2.25 3.2 3.9 4.7 6.14 7.64
1 1.2 1.5 1.5 2 2.5 3 3.5
2 2.2 1.5 2 2.5 3 3.5 4
4 5 5.5 7 8 10 13 15
1 1.1 1.3 1.8 2.1 2.5 3.3 4
0.2 0.2 0.3 0.4 0.4 0.5 0.5 0.8
M1.2 M1.4 M1.4 M2 M2 M2.5 M3 M3
0.24 0.44 0.67 1.51 2.57 4.16 9.03 16.7
