Slotted Set Screws With Cone Point

CNS 4477 - 1981

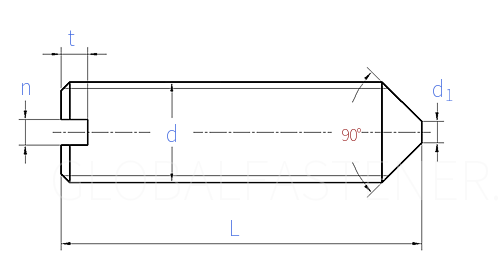

Display drawing:

台湾CNS 4477 - 1981 CNS4477 4477CNS Slotted Set Screws With Cone Point
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Thread Size
d
M1 M1.2 M1.4 M1.6 (M1.8) M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10
t min
max
n
z ≈
0.63 0.63 0.75 0.88 0.88 1 1.1 1.25 1.5 1.75 2 2.5 3.1 3.75
0.78 0.79 0.94 1.06 1.07 1.2 1.33 1.5 1.78 2.05 2.35 2.9 3.6 4.25
0.2 0.2 0.2 0.25 0.25 0.25 0.4 0.4 0.5 0.6 0.8 1 1.2 1.6
0.5 0.6 0.7 0.8 0.9 1 1.25 1.5 1.75 2 2.5 2.5 3 4
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - - - -
