Large Rivets - Oval Countersunk Head Rivets (Manufactured Shape) [Table 5] (A31, A131, A152, A502)

ANSI B 18.1.2 (T5) - 1972 (R2016)

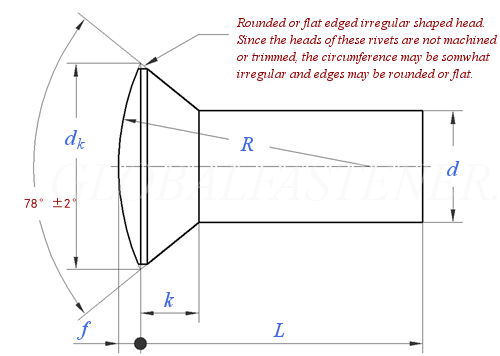

Display drawing:

美标ANSI B18.1.2 (T5) - 1972 (R2016) ANSI1 Large Rivets - Oval Countersunk Head Rivets (Manufactured Shape) [Table 5] (A31, A131, A152, A502)
Nominal Diameter
d
1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 1-5/8 1-3/4
d max
min
dk max
min
k Nominal Size
f Nominal Size
R Nominal Size
0.520 0.655 0.780 0.905 1.030 1.160 1.285 1.415 1.540 1.665 1.790
0.478 0.600 0.725 0.850 0.975 1.098 1.223 1.345 1.470 1.588 1.713
0.936 1.194 1.421 1.647 1.873 2.114 2.340 2.567 2.793 3.019 3.262
0.872 1.112 1.322 1.532 1.745 1.973 2.199 2.426 2.652 2.878 3.121
0.260 0.339 0.400 0.460 0.520 0.589 0.650 0.710 0.771 0.831 0.901
0.095 0.119 0.142 0.166 0.190 0.214 0.238 0.261 0.285 0.309 0.332
1.125 1.406 1.688 1.969 2.250 2.531 2.812 3.094 3.375 3.656 3.938
