Click Specification

Unit:mm

90° Degree Oval Countersunk Rivets

NF E 27-154 - 1952

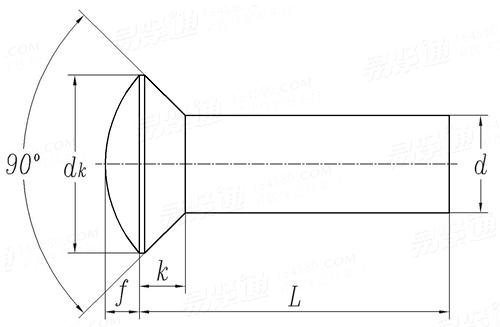

Display drawing:

法国NF E27-154 - 1952 NF27-154 27-154NF 90° Degree Oval Countersunk Rivets
Nominal Diameter
d
3 3.5 4 4.5 5 5.5 6 7 8 9
f
dk
k
0.75 0.9 1 1.1 1.25 1.4 1.5 1.75 2 2.25
6 7 8 9 10 11 12 14 16 18
1.5 1.75 2 2.25 2.5 2.75 3 3.5 4 4.5
Nominal Diameter
d
10 11 12 14 16 18 20 22 24 27
f
dk
k
2.5 2.75 3 3.5 4 4.5 5 5.5 6 6.75
20 22 24 28 32 38 40 44 48 54
5 5.5 6 7 8 9 10 11 12 13.5
