Click Specification

ASME B 17.1 (USAS B17.1) - 1967 (R2013)

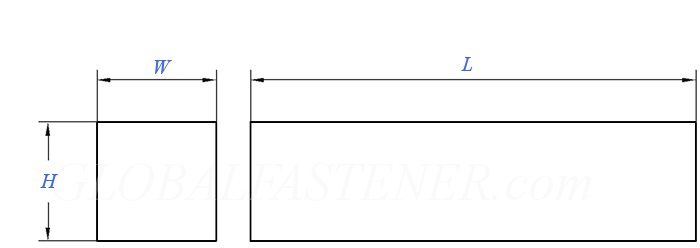

Display drawing:

Size

3/32

1/8

3/16

1/4

5/16

3/8

1/2

5/8

3/4

7/8

W
H	Square
	Rectangular

3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	7/8	1
3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	7/8	1
/	3/32	1/8	3/16	1/4	1/4	3/8	7/16	1/2	5/8	3/4

Size

1-1/4

1-1/2

1-3/4

2-1/2

3-1/2

W
H	Square
	Rectangular

1-1/4	1-1/2	1-3/4	2	2-1/2	3	3-1/2	4	5	6	7
1-1/4	1-1/2	1-3/4	2	2-1/2	3	3-1/2	/	/	/	/
7/8	1	1-1/2	1-1/2	1-3/4	2	2-1/2	3	3-1/2	4	5
