Click Specification

Locking Assemblies, Type Z3

JB /T 7934 - 1999

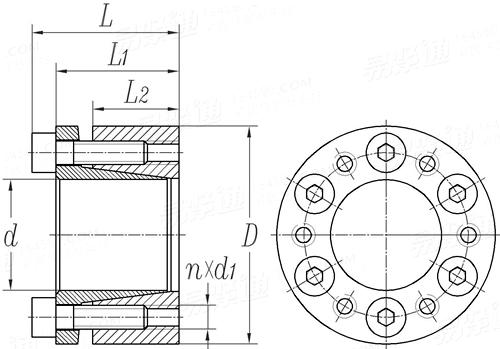

Display drawing:

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs

Default density g/cm³

Nominal Diameter
d

D
L
L₁
L₂
d₁
n
额定负荷-轴向力/KN
额定负荷-转矩/KN·m
胀套与轴结合面上的压力N/mm²
胀套与轮毂结合面上的压力N/mm²
螺钉的拧紧力矩/N·m
per unit≈kg

47	47	50	55	55	60	65	75	80	85	90	95	110
37	37	37	37	37	37	37	46	46	46	46	46	60
31	31	31	31	31	31	31	38	38	38	38	38	50
21.7	21.7	21.7	21.7	21.7	21.7	21.7	25.3	25.3	25.3	25.3	25.3	33.4
M6	M6	M6	M6	M6	M6	M6	M8	M8	M8	M8	M8	M10
4	4	5	5	5	6	6	6	6	7	7	8	7
30	30	35	35	35	45	45	80	80	90	90	105	140
0.3	0.33	0.44	0.49	0.53	0.81	0.94	1.86	2.07	2.54	2.77	3.58	5.1
287	260	287	256	239	246	215	283	255	270	247	261	244
90	90	106	96	96	106	98	134	126	138	130	141	128
17	17	17	17	17	17	17	41	41	41	41	41	83
0.29	0.27	0.3	0.36	0.34	0.38	0.41	0.7	0.76	0.82	0.88	0.94	2.1

Nominal Diameter
d

100

105

110

120

125

130

140

150

D
L
L₁
L₂
d₁
n
额定负荷-轴向力/KN
额定负荷-转矩/KN·m
胀套与轴结合面上的压力N/mm²
胀套与轮毂结合面上的压力N/mm²
螺钉的拧紧力矩/N·m
per unit≈kg

115	120	125	130	135	145	150	155	165	170	180	190	200
60	60	60	60	60	68	68	68	68	68	68	68	77
50	50	50	50	50	58	58	58	58	58	58	58	65
33.4	33.4	33.4	33.4	33.4	40.8	40.8	40.8	40.8	40.8	40.8	40.8	45.4
M10	M10	M10	M10	M10	M10	M10	M10	M10	M12	M12	M12	M12
7	7	8	8	10	10	10	10	12	10	10	10	12
140	140	175	175	205	220	220	220	260	320	320	320	380
5.46	5.85	7.45	7.9	9.9	11	11.55	12.1	15.7	17.5	20.7	22.5	28.5
228	214	230	217	257	192	210	175	192	189	188	175	196
119	112	129	124	149	114	114	107	120	120	120	114	130
83	83	83	83	83	83	83	83	83	145	145	145	145
2.2	2.3	2.4	2.6	2.7	3.7	3.9	4	4.3	4.8	5.9	6.3	6.7
