Click Specification

Unit:mm

Hydraulic Fluid Power - Accessories for Single Rod Cylinders, 16 Mpa (160 bar) Medium and 25 Mpa (250 bar) Series - Clevis Bracket, In Angle

GB /T 39949.1 (AB3) - 2021

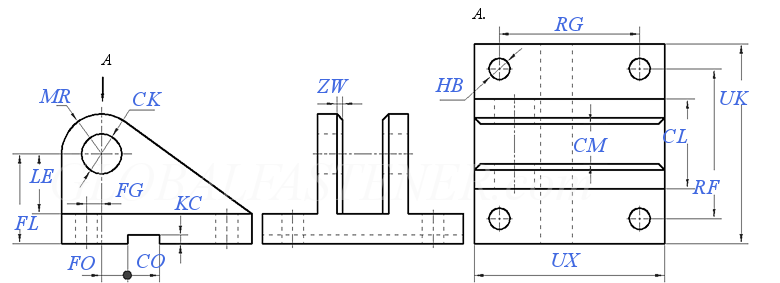

Display drawing:

国标GB /T39949.1 (AB3) - 2021 GB39949.1 39 Hydraulic Fluid Power - Accessories for Single Rod Cylinders, 16 Mpa (160 bar) Medium and 25 Mpa (250 bar) Series - Clevis Bracket, In Angle
Model
12 16 20 25 32 40 50 63 70 80 90 100 110 125
Nominal force /N
CK ① H9
CL ① max
CM ① A13
FL ① js13
ZW min
HB ① H13
CO ① N9
LE ① min
MR ① max
RG ① js13
RF ① js13
UX ① max
UK ① max
FG ① js14
KC ① +0.3, 0
FO ① js14
8000 12500 20000 32000 50000 80000 125000 200000 250000 320000 400000 500000 635000 800000
12 16 20 25 32 40 50 63 70 80 90 100 110 125
28 36 45 56 70 90 110 140 150 170 190 210 240 270
12 16 20 25 32 40 50 63 70 80 90 100 110 125
34 40 45 55 65 76 95 112 130 140 160 180 200 230
/ / / / / / / 1×45° 2×45° 2×45° 2×45° 2×45° 2×45° 5×45°
9 11 11 13.5 17.5 22 26 33 33 39 45 52 52 52
10 16 16 25 25 36 36 50 50 50 63 63 80 80
22 27 30 37 43 52 65 75 90 95 108 120 138 170
12 16 20 25 32 40 50 63 70 80 90 100 110 125
45 55 70 85 110 125 150 170 190 210 235 250 305 350
52 65 75 90 110 140 165 210 230 250 280 315 335 365
65 80 95 115 145 170 200 230 250 280 320 345 400 450
72 90 100 120 145 185 215 270 290 320 360 405 425 455
2 3.5 7.5 10 14.5 17.5 25 33 40 45 47.5 52.5 62.5 75
3.3 4.3 4.3 5.4 5.4 8.4 8.4 11.4 11.4 11.4 12.4 12.4 15.4 15.4
10 10 10 10 6 6 / / / / / / / /
①,CK - Diameter of pivot holes
CL - Mounting clevis lengths
CM - Rod clevis slot width, clevis bracket slot width
FL - Mounting face to pivot axis
HB - Mounting holes diameter
CO - Width of key way
LE - Clearance around pivot axis
MR - Clearance radius of pivot axis
RG - Distance of mounting bolts
RF - Distance of mounting holes
UX - Envelope length of clevis bracket
UK - Envelope length
FG - Distance between studs and mounting holes
KC - Groove depth for key way
FO - Distance between clevis slot and pivot axis
