GB /T 14626 (HHB) - 1993

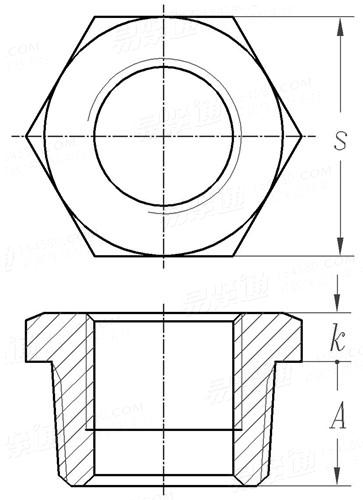

Display drawing:

Inside Nominal Diameter

100

Thread size code
A	min
s
k	min

1/4	3/8	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4
11	12.5	14.5	16	19	20.5	20.5	22	27	28.5	32
16	17.5	22	27	35	44.5	51	63.5	76	89	117.5
3	4	5	6	6	7	8	9	10	10	13

Alternative history

GB /T 14626HHB - 1993 GB /T 14383HHB - 2008 GB /T 14383HHB - 2021
