Locknuts

ISO 8434-1 (LN) - 2018

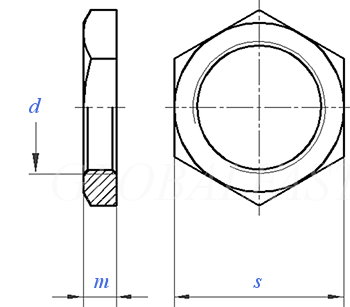

Display drawing:

国际ISO 8434-1 (LN) - 2018 ISO8434-1 8434- Locknuts
Tube outer diameter
6 8 10 12 15 18 22 28 35 42
Series
d
s
m ±0.2
L L L L L L L L L L
M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M26×1.5 M30×2 M36×2 M45×2 M52×2
17 19 22 24 30 36 41 46 55 65
6 6 6 6 7 8 8 9 9 10
Tube outer diameter
6 8 10 12 16 20 25 30 38
Series
d
s
m ±0.2
S S S S S S S S S
M14×1.5 M16×1.5 M18×1.5 M20×1.5 M24×1.5 M30×2 M36×2 M42×2 M52×2
19 22 24 27 32 41 46 50 65
6 6 6 6 7 8 9 9 10
①,Locknuts for the following tube ODs in the L and S series share identical dimensiongs:

L series tube OD 8 and S series tube OD 6; L series tube OD 10 and S series tube OD 8;

L series tube OD 12 and S series tube OD 10; L series tube OD 22 and S series tube OD 20;

L series tube OD 28 and S series tube OD 25; L series tube OD 42 and S series tube OD 38;
