Click Specification

Unit:mm

Swivel Stud Straight Adapters, Elastomeric Sealing (E), Metric Thread (M)

ISO 8434-1 (SWODS-E-M) - 2018

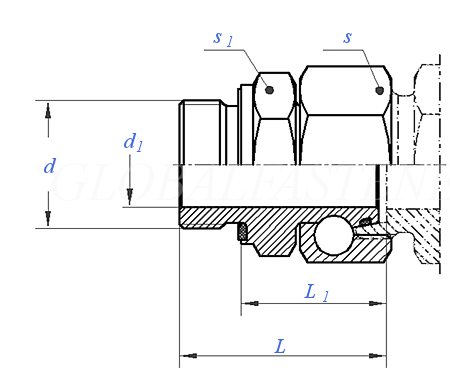

Display drawing:

国际ISO 8434-1 (SWODS-E-M) - 2018 ISO8434- Swivel Stud Straight Adapters, Elastomeric Sealing (E), Metric Thread (M)
Tube outer diameter
6 8 10 12 15 18 22 28 35 42
Series
s
d
d1 min
L ±0.5
L1 Ref.
s1
L L L L L L L L L L
14 17 19 22 27 32 36 41 50 60
M10×1 M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M26×1.5 M33×2 M42×2 M48×2
2.5 4 6 8 10 13 17 22 28 34
32.5 38.5 39.5 42.5 43.5 45.5 48.5 53 62.5 68.5
24.5 26.5 27.5 30.5 31.5 31.5 32.5 35 42.5 46.5
14 17 19 22 24 27 32 41 50 55
Tube outer diameter
6 8 10 12 16 20 25 30 38
Series
s
d
d1 min
L ±0.5
L1 Ref.
s1
S S S S S S S S S
17 19 22 24 30 36 46 50 60
M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M27×2 M33×2 M42×2 M48×2
2.5 4 6 8 11 14 18 23 30
39 41.5 44 46 51 59 66 71 82
27 29.5 32 34 37 43 48 51 60
17 19 22 24 27 32 41 50 55
①,Method of swivel nut attachment is at the option of the manufacturer
②,The dimensions of the cone end can be found in "ISO 8434-1 (CR) - 2018 Cutting Ring (CR) and 24° Cone End"
