Click Specification

Unit:mm

Cutting Ring (CR) and 24° Cone End

ISO 8434-1 (CR) - 2018

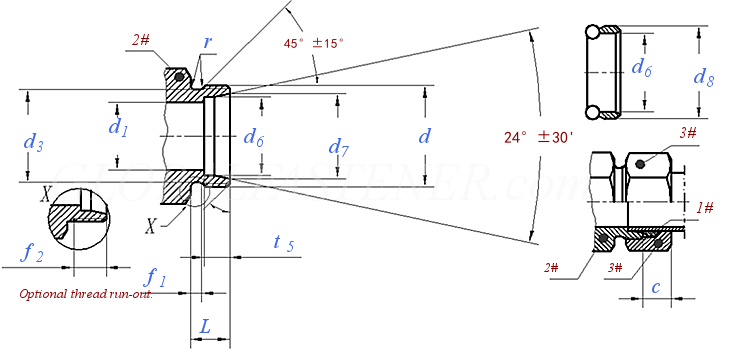

Display drawing:

国际ISO 8434-1 (CR) - 2018 ISO8434-1 8434- Cutting Ring (CR) and 24° Cone End
Tube outer diameter
4 5 6 8 6 8 10 12 15 18 22 28
Series
d
L ±0.2
t5 +0.3, 0
d1 Nominal Size
max
min
d6 Nominal Size
max
min
d7 +0.1, 0
d8 max
d3 0, -0.2
f1 +0.3, 0
f2 min
r ±0.2
c ≈
LL LL LL LL L L L L L L L L
M8×1 M10×1 M10×1 M12×1 M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M26×1.5 M30×2 M36×2
8 8 8 9 10 10 11 11 12 12 14 14
4 5.5 5.5 5.5 7 7 7 7 7 7.5 7.5 7.5
3 3.5 4.5 6 4 6 8 10 12 15 19 24
3.1 3.6 4.6 6.1 4.1 6.1 8.2 10.2 12.2 15.2 19.2 24.2
2.9 3.4 4.4 5.9 3.9 5.9 7.8 9.8 11.8 14.8 18.8 23.8
4 5 6 8 6 8 10 12 15 18 22 28
4.215 5.215 6.215 8.24 6.215 8.24 10.24 12.26 15.26 18.26 22.29 28.29
4.14 5.14 6.14 8.15 6.14 8.15 10.15 12.15 15.15 18.15 22.16 28.16
5 6.5 7.5 9.5 8.1 10.1 12.3 14.3 17.3 20.3 24.3 30.3
6.5 8.5 8.5 10.5 10 12 14 16 20 24 27 33
6.4 8.4 8.4 10.4 9.7 11.7 13.7 15.7 19.7 23.7 27 33
2 2 2 2 3 3 3 3 3 3 4 4
6 6 6 8 7.5 7.5 8.5 8.5 9.5 9.5 10.5 10.5
0.8 0.8 0.8 0.8 1 1 1 1 1 1 1.2 1.2
6 6 6 6 8 8 8 8 8 9 9 9
Tube outer diameter
35 42 6 8 10 12 16 20 25 30 38
Series
d
L ±0.2
t5 +0.3, 0
d1 Nominal Size
max
min
d6 Nominal Size
max
min
d7 +0.1, 0
d8 max
d3 0, -0.2
f1 +0.3, 0
f2 min
r ±0.2
c ≈
L L S S S S S S S S S
M45×2 M52×2 M14×1.5 M16×1.5 M18×1.5 M20×1.5 M24×1.5 M30×2 M36×2 M42×2 M52×2
16 16 12 12 12 12 14 16 18 20 22
10.5 11 7 7 7.5 7.5 8.5 10.5 12 13.5 16
30 36 4 5 7 8 12 16 20 25 32
30.3 36.3 4.1 5.2 7.2 8.2 12.2 16.2 20.2 25.2 32.3
29.7 35.7 3.9 4.8 6.8 7.8 11.8 15.8 19.8 24.8 31.7
35.3 42.3 6 8 10 12 16 20 25 30 38.3
35.4 42.4 6.215 8.24 10.24 12.26 16.26 20.29 25.29 30.29 38.4
35.3 42.3 6.14 8.15 10.15 12.15 16.15 20.16 25.16 30.16 38.3
38 45 8.1 10.1 12.3 14.3 18.3 22.9 27.9 33 41
42 49 12 14 16 18 22 27 33 39 49
42 49 11.7 13.7 15.7 17.7 21.7 27 33 39 49
4 4 3 3 3 3 3 4 4 4 4
12.5 12.5 9.5 9.5 9.5 9.5 11.5 12.5 14.5 16.5 18.5
1.2 1.2 1 1 1 1 1 1.2 1.2 1.2 1.2
11 12 8 8 9 9 10 11 12 13 15
