Weld-in Bulkhead Connectors

ISO 8434-1 (WDBHS) - 2018

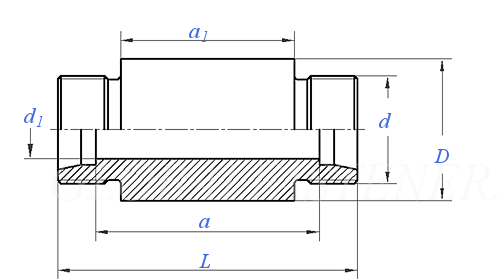

Display drawing:

国际ISO 8434-1 (WDBHS) - 2018 ISO8434-1 84 Weld-in Bulkhead Connectors
Tube outer diameter
6 8 10 12 15 18 22 28 35 42
Series
D ±0.2
d1 Ref.
L ±0.3
a Ref.
a1 Ref.
d
L L L L L L L L L L
18 20 22 25 28 32 36 40 50 60
4 6 8 10 12 15 19 24 30 36
70 70 72 72 84 84 88 88 92 92
56 56 58 58 70 69 73 73 71 70
50 50 50 50 60 60 60 60 60 60
M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M26×1.5 M30×2 M36×2 M45×2 M52×2
Tube outer diameter
6 8 10 12 16 20 25 30 38
Series
D ±0.2
d1 Ref.
L ±0.3
a Ref.
a1 Ref.
d
S S S S S S S S S
20 22 25 28 35 38 45 50 60
4 5 7 8 12 16 20 25 32
74 74 74 74 88 92 96 100 104
60 50 59 59 71 71 72 73 72
50 50 50 50 60 60 60 60 60
M14×1.5 M16×1.5 M18×1.5 M20×1.5 M24×1.5 M30×2 M36×2 M42×2 M52×2
①,The dimensions of the cone end can be found in "ISO 8434-1 (CR) - 2018 Cutting Ring (CR) and 24° Cone End"
