Click Specification

Unit:mm

Cross Recessed 100° Countersunk Head Screws

GJB 3371 (/57~/60) - 1998

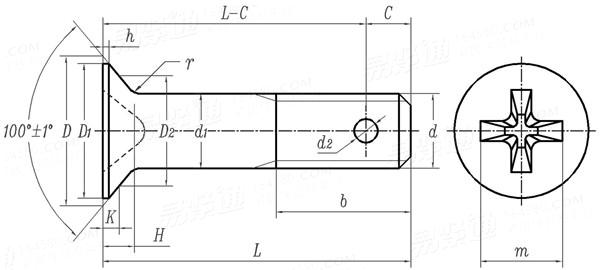

Display drawing:

军标GJB 3371 (/57~/60) - 1998 GJB3371 3371 Cross Recessed 100° Countersunk Head Screws
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
M4 M5 M6 M8 M10
P Pitch
d1 h12 max=nominal size
min
H ref.
h min
D ref.
D1 min
D2
b ref.
k 0，-0.08
r 0，-0.2
d2 H13 min=nominal size
max
C ref.
m max
min
0.7 0.8 1 1.25 1.5
4 5 6 8 10
3.88 4.88 4.88 7.85 9.85
1.68 2.11 2.53 3.38 4.23
0.08 0.1 0.1 0.1 0.1
8 10 12 16 20
7.2 9 10.8 14.8 18.8
5.78 7.71 9 12.21 15.43
7.5 8.5 10 11.5 15
0.93 0.96 1.26 1.6 1.93
0.4 0.5 0.7 0.7 0.8
1 1.6 1.6 2 2.5
1.14 1.74 1.74 2.14 2.64
2.5 3 3 4 4
3.91 4.29 4.42 6.27 8.05
3.58 3.96 4.09 5.94 7.72
Weight of per 1000 steel products(≈kg)
- - - - -
