Click Specification

Unit:mm

Aerospace Series - Screws, 100° Countersunk Head, Offset Cruciform Recess, Threaded To Head, in Heat Resisting Steel Fe-pa92ht (A286), Silver Plated - Classification: 900 Mpa (At Ambient Temperature)/650℃

EN 2940 - 1995

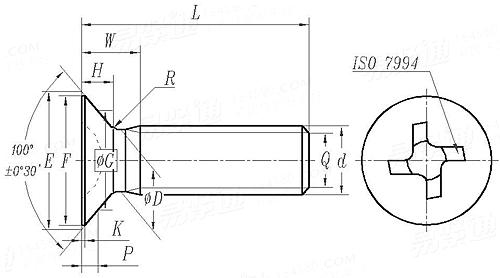

Display drawing:

欧标EN 2940 - 1995 EN2940 2940EN Aerospace Series - Screws, 100° Countersunk Head, Offset Cruciform Recess, Threaded To Head, in Heat Resisting Steel Fe-pa92ht (A286), Silver Plated - Classification: 900 Mpa (At Ambient Temperature)/650℃
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Thread Size
d
MJ3
×0.5-4h6h 		MJ4
×0.7-4h6h 		MJ5
×0.8-4h6h
Code
D Nominal Size
max
min
E
F min
G
H
K min
P max=nominal size
min
Q Nominal Size
max
min
R max
min
W max
min
Recess number /ISO 7994
030 040 050
2.68 3.55 4.48
2.81 3.68 4.61
2.55 3.42 4.35
6 8 10
5.4 7.2 9
4.5 5.78 7.71
1.4 1.9 2.4
0.06 0.08 0.1
0.63 0.93 0.96
0.55 0.85 0.88
2.3 3 3.4
2.3 3 3.9
1.8 2.5 2.9
0.4 0.4 0.5
0.2 0.2 0.3
2.4 3.27 3.98
2.15 2.92 3.58
R3 R4 R5
Weight of per 1000 steel products(≈kg)
- - -
