Click Specification

Unit:mm

Hex Butt Joint Bolt

HB 1- 149 - 1995

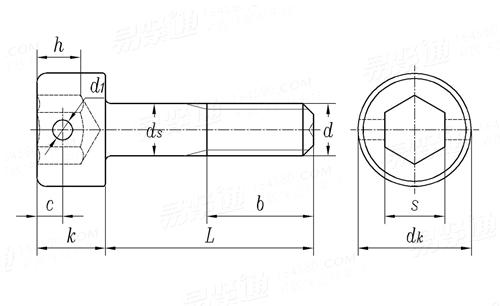

Display drawing:

航空HB 1-149 - 1995 HB149 149HB Hex Butt Joint Bolt
Screw Thread
d
M10 M12 M14 M16 M18 M20 M22
P Pitch
ds
b
dk
s
c
h
k
d1
1.5 1.5 1.5 1.5 1.5 1.5 1.5
10 12 14 16 18 20 22
17 19 21 22 26 27 28
20 25 25 27 32 34 37
14 17 17 19 22 24 27
3 3 3 3 3.5 3.5 4
10 12 13 15 16 17 19
15 18 20 23 25 28 30
2 2 2 2 2 2 2
