Hexagon Socket Head Cap Screws with Reduced Height of Head

CNS 4556 - 1981

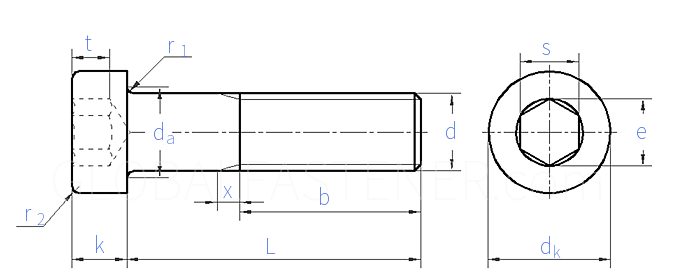

Display drawing:

台湾CNS 4556 - 1981 CNS4556 4556CNS Hexagon Socket Head Cap Screws with Reduced Height of Head
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight Thread length.
Screw Thread
d
M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 M22 M24
P Pitch
b L≤120
120＜L≤200
L＞200
dk
da max
e ≈
k
r1 min
r2
s
t
0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
12 14 16 18 22 26 30 34 38 42 46 50 54
/ / / / 28 32 36 40 44 48 52 56 60
/ / / / / / / / 57 61 65 69 73
5.5 7 8.5 10 13 16 18 21 24 27 30 33 36
3.6 4.7 5.7 6.8 9.2 11.2 14.2 16.2 18.2 20.2 22.4 24.4 26.4
2.3 2.9 3.6 4.7 5.9 8.1 9.4 11.7 14 14 16.3 16.3 19.8
2 2.8 3.5 4 5 6 7 8 9 10 11 12 13
0.1 0.2 0.2 0.25 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8
0.3 0.4 0.4 0.5 0.8 1 1 2 2 2 2 2 2
2 2.5 3 4 5 7 8 10 12 12 14 14 17
1.5 2.3 2.7 3 4.2 4.8 5.3 5.5 5.5 7.5 7.5 8 8
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - - -
