Hexagon Head Bolts with Conical Spring Washers

Q 141

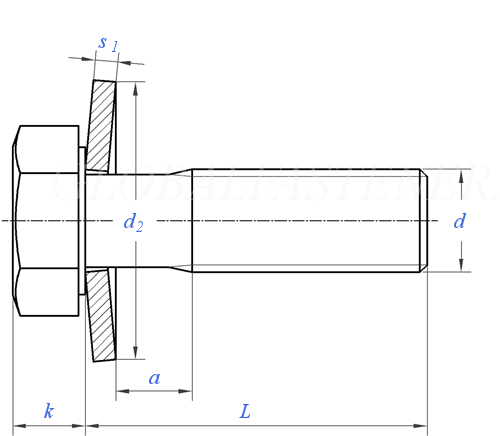

Display drawing:

汽标代号Q 141 Q141 141Q Hexagon Head Bolts with Conical Spring Washers
Download CAD Model
Thread Size
d
M5 M6 M8 M10 M12
P pitch
a max
d2 Nominal Size Type N
Type L
s1 Nominal Size Type N
Type L
0.8 1 1.25 1.5 1.75
1.6 2 2.5 3 3.5
11 12 16 20 24
15 18 22 27 30
1.2 1.4 1.9 2.2 2.8
1.4 1.7 2.2 2.8 3.2
