Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

High Strength Bolts with Large Hexagon Head Assemblies for Steel Structures

GB /T 1231 (assemblies) - 2024

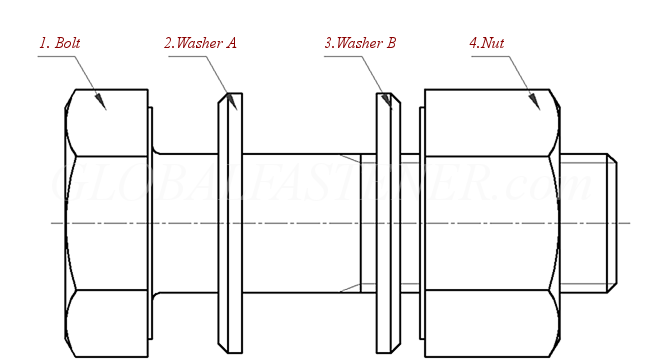

Display drawing:

国标GB /T1231 (assemblies) - 2024 GB1231 1 High Strength Bolts with Large Hexagon Head Assemblies for Steel Structures
Download CAD Model
Size
Assemblies M12 M16 M20 (M22) M24 (M27) M30 (M33) M36
1
2
3
4
螺栓/bolt M12 M16 M20 M22 M24 M27 M30 M33 M36
垫圈A/washer A 12 16 20 22 24 27 30 33 36
垫圈B/washer B 12 16 20 22 24 27 30 33 36
螺母/nut M12 M16 M20 M22 M24 M27 M30 M33 M36
Send Inquiry
