Slotted Pan Head Tapping Screws [Annex Table 1]

JIS B 1115 (AT1) - 1996

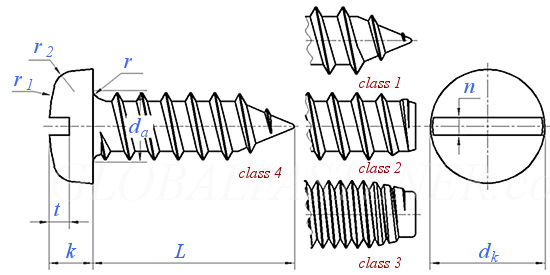

Display drawing:

日标JIS B1115 (AT1) - 1996 JIS1115 1115JIS Slotted Pan Head Tapping Screws [Annex Table 1]
Thread Size
2 2.5 3 3.5 4 4.5 5 6
dk max=nominal size
min
k Nominal Size
max
min
r1 ≈
r2 ≈
n min=nominal size
max
t Nominal Size
max
min
r max
3.5 4.5 5.5 6 7 8 9 10.5
3.1 4.1 5 5.5 6.5 7.4 8.4 9.8
1.3 1.7 2 2.3 2.6 2.9 3.3 3.9
1.4 1.8 2.15 2.45 2.75 3.05 3.45 4.1
1.2 1.6 1.85 2.15 2.45 2.75 3.15 3.7
4.5 6 7 8 9 11 12 14
0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.3
0.56 0.66 0.86 0.86 1.06 1.06 1.26 1.66
0.7 0.8 1 1 1.2 1.2 1.46 1.86
0.7 0.9 1.1 1.25 1.4 1.6 1.8 2.1
0.8 1.05 1.25 1.45 1.6 1.85 2.1 2.4
0.6 0.75 0.95 1.05 1.2 1.35 1.5 1.8
0.3 0.3 0.4 0.4 0.5 0.5 0.6 0.7
