Metal Bone Screw with Single-slot Recess, with Symmetrical Thread Form HC [Figure 1]

ISO 9268 (F1) - 1988

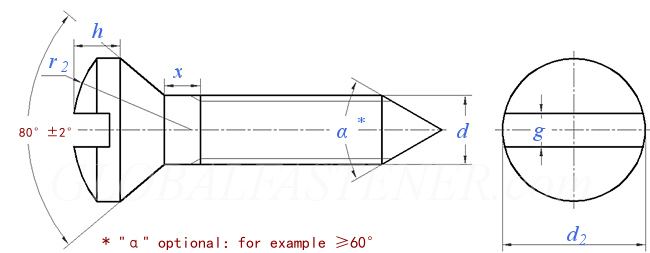

Display drawing:

国际ISO 9268 (F1) - 1988 ISO9268 9268ISO Metal Bone Screw with Single-slot Recess, with Symmetrical Thread Form HC [Figure 1]
Thread Size
d
HC2.9
d2
g
h
r2
x max
4.62~6.1
1.25~1.4
1.5~2
5
1.6
①,Suitable flutes may be added to make the screws self-tapping.
