Slotted Set Screws with Flat Point (A307, SAE J429, F468, F593)

ASME B 18.6.2 (T3-Flat) - 2020

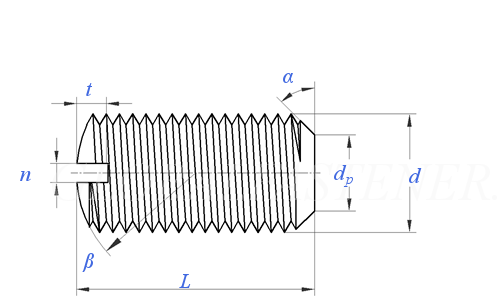

Display drawing:

Thread Size
d

0#
0.0600

1#
0.0730

2#
0.0860

3#
0.0990

4#
0.1120

5#
0.1250

6#
0.1380

8#
0.1640

10#
0.1900

β ^②
n	max
	min
t	max
	min
d_p	max
	min
Y ^①

0.060	0.073	0.086	0.099	0.112	0.125	0.138	0.164	0.190
0.014	0.016	0.018	0.020	0.024	0.026	0.028	0.032	0.035
0.010	0.012	0.014	0.016	0.018	0.020	0.022	0.026	0.029
0.020	0.020	0.025	0.028	0.031	0.036	0.040	0.046	0.053
0.016	0.016	0.019	0.022	0.025	0.026	0.030	0.036	0.043
0.033	0.040	0.047	0.054	0.061	0.067	0.074	0.087	0.102
0.027	0.033	0.039	0.045	0.051	0.057	0.064	0.076	0.088
5/64	3/32	7/64	1/8	5/32	3/16	3/16	1/4	1/4

Thread Size
d

12#
0.2160

1/4
0.2500

5/16
0.3125

3/8
0.3750

7/16
0.4375

1/2
0.5000

9/16
0.5625

5/8
0.6250

3/4
0.7500

β ^②
n	max
	min
t	max
	min
d_p	max
	min
Y ^①

0.216	0.250	0.312	0.375	0.438	0.500	0.562	0.625	0.750
0.042	0.049	0.055	0.068	0.076	0.086	0.096	0.107	0.134
0.035	0.041	0.047	0.060	0.068	0.076	0.086	0.097	0.124
0.061	0.068	0.083	0.099	0.114	0.130	0.146	0.161	0.193
0.051	0.058	0.073	0.089	0.104	0.120	0.136	0.151	0.183
0.115	0.132	0.172	0.212	0.252	0.291	0.332	0.371	0.450
0.101	0.118	0.156	0.194	0.232	0.270	0.309	0.347	0.425
5/16	5/16	3/8	7/16	1/2	9/16	5/8	3/4	7/8

①,Point angle α shall be 45 deg. plus 5 deg., minus 0 deg. for screws of nominal lengths equal to or longer than those listed for variable Y, and 30 deg. minimum for screws of shorter nominal lengths.
②,Tolerance on radius for nominal sizes up to and including 5 (0.125 in.) shall be +0.015 in., -0.000 and for larger sizes, +0.031 in., -0.000. Slotted ends on screws may be flat at the option of the manufacturer.
③,When specifying nominal size in decimals, zeros preceding the decimal and in the fourth decimal place shall be omitted.

Alternative history

ASME/ANSI B 18.6.2 - 1998(R2010) ASME B 18.6.2 - 2020
