Hexagon Head Plug

ASME B 16.11 - 2021

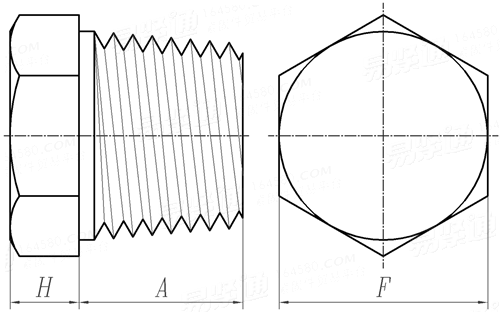

Display drawing:

美标ASME B16.11 - 2021 ASME16.11 16.11ASME Hexagon Head Plug
Pipe Diameter(Nominal)
1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4
A inch min
mm min
F inch
mm
H inch
mm
0.38 0.44 0.5 0.56 0.62 0.75 0.81 0.81 0.88 1.06 1.12 1.25
10 11 13 14 16 19 21 21 22 27 28 32
0.44 0.62 0.69 0.88 1.06 1.38 1.75 2 2.5 3 3.5 4.62
11.11 15.88 17.46 22.23 26.99 34.93 44.45 50.8 63.5 76.2 88.9 117.48
0.25 0.25 0.31 0.31 0.38 0.38 0.56 0.62 0.69 0.75 0.81 1
6 6 8 8 10 10 14 16 18 19 21 25
