Click Specification

Round Head Plug

ASME B 16.11 - 2021

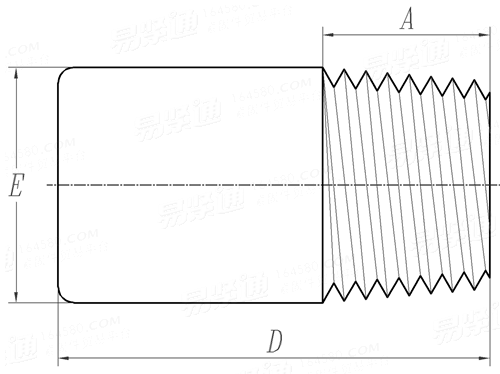

Display drawing:

Pipe Diameter(Nominal)

1/8

1/4

3/8

1/2

3/4

1-1/4

1-1/2

2-1/2

A	inch	min
	mm	min
E	inch	Nominal Size
	mm	Nominal Size
D	inch	min
	mm	min

0.38	0.44	0.5	0.56	0.62	0.75	0.81	0.81	0.88	1.06	1.12	1.25
10	11	13	14	16	19	21	21	22	27	28	32
0.41	0.53	0.69	0.84	1.06	1.31	1.69	1.91	2.38	2.88	3.5	4.5
10	14	18	21	27	33	43	48	60	73	89	114
1.38	1.62	1.62	1.75	1.75	2	2	2	2.5	2.75	2.75	3
35	41	41	44	44	51	51	51	64	70	70	76

Alternative history

ASME B 16.11 - 1991 ASME B 16.11 - 2016 ASME B 16.11 - 2021
