Hexagon Reduced Head Bolts Product Grade B, Type 5

GOST 7796 (-5) - 1970

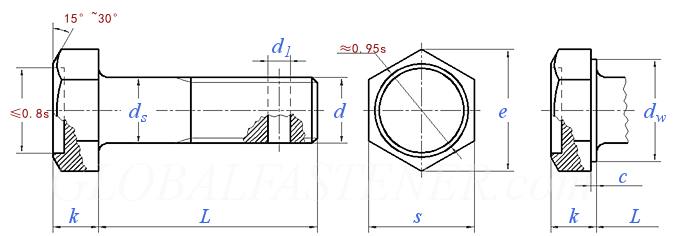

Display drawing:

俄标GOST 7796 (-5) - 1970 GOST7796 7796GOS Hexagon Reduced Head Bolts Product Grade B, Type 5

Thread Size
d

8

10

12

(14)

16

(18)

20

(22)

24

(27)

30

36

42

48

P		pitch	Coarse thread
			Fine thread
d_s
s
k
e		min
d_w		min
c		min
		max
d₁

1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
1	1.25	1.25	1.5	1.5	1.5	1.5	1.5	2	2	2	3	3	3
8	10	12	14	16	18	20	22	24	27	30	36	42	48
12	14	17	19	22	24	27	30	32	36	41	50	60	70
5.3	6.4	7.5	8.8	10	12	12.5	14	15	17	18.7	22.5	26	30
13.1	15.3	18.7	20.9	23.9	26.2	29.6	33	35	39.6	45.2	55.4	66.4	76.9
10.5	12.5	15.5	17.2	20.1	22	24.8	27.7	29.5	33.2	38	46.6	55.9	64.7
0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.25	0.25
0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
2	2.5	3.2	3.2	4	4	4	5	5	5	6.3	6.3	8	8
