Click Specification

Unit:mm

Aerospace series - Screws, Hexagon Head, Threaded to Head, in Heat Resisting Steel FE-PA92HT (A286), Silver Plated - Classification: 900 MPa (at Ambient Temperature)/650 °C

EN 2938 - 1995

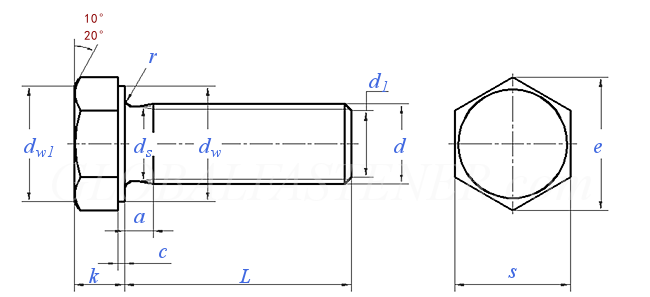

Display drawing:

欧标EN 2938 - 1995 EN2938 2938EN Aerospace series - Screws, Hexagon Head, Threaded to Head, in Heat Resisting Steel FE-PA92HT (A286), Silver Plated - Classification: 900 MPa (at Ambient Temperature)/650 °C
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Size code
030 040
d Thread Size
ds Nominal Size
max
min
e min
dw min
dw1 min
c max
min
k max=nominal size
min
d1 max=nominal size
min
s max=nominal size
min
a max
min
r
MJ3×0.5-4h6h MJ4×0.7-4h6h
2.68 3.55
2.81 3.68
2.55 3.42
6.5 7.6
5.4 6.4
5.5 6.4
0.4 0.5
0.2 0.2
2 2.5
1.7 2.2
2.3 3.1
1.8 3.05
6 7
5.88 6.85
1.4 1.8
1.15 1.45
0.2~0.4 0.2~0.4
Weight of per 1000 steel products(≈kg)
- -
