Click Specification

Aerospace Series - Nuts, Hexagon, Self-locking in Steel, Cadmium Plated, MoS2 Lubricated - Classification: 1100 Mpa (At Ambient Temperature)/235 °c

EN 3626 - 2006

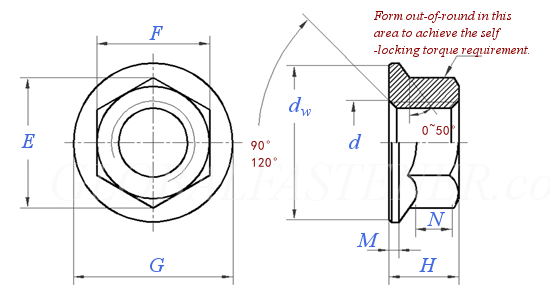

Display drawing:

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs

Default density g/cm³

Thread Size
d

MJ3
×0.5 -4H6H

MJ4
×0.7 -4H6H

MJ5
×0.8 -4H6H

MJ6
×1 -4H5H

MJ7
×1 -4H5H

MJ8
×1 -4H5H

MJ10
×1.25 -4H5H

MJ12
×1.25 -4H5H

MJ14
×1.5 -4H5H

Code
E	min
F	max=nominal size
F	min
G	max
H	max
d_w	min
M	min
N	min
per 1000 units≈kg

030	040	050	060	070	080	100	120	140
4.2	5.3	6.5	7.6	8.7	10.9	13.2	15.5	17.9
4	5	6	7	8	10	12	14	16
3.88	4.88	5.88	6.85	7.85	9.78	11.73	13.73	15.73
6	7.4	9.1	10.6	12.1	13.6	16.8	19.9	23
3	4	5	5.4	6.3	7.2	9	10.8	12.6
5.3	6.7	8.3	9.8	11.3	12.8	15.8	18.8	21.9
0.4	0.5	0.6	0.7	0.8	0.9	1.1	1.4	1.7
1.2	1.5	2	2.3	2.7	3.2	3.8	4.5	5
0.35	0.7	1.05	1.5	2.45	3.6	6.25	10.35	13.2
