Star Grips - Form C

DIN 6336 (C) - 2008

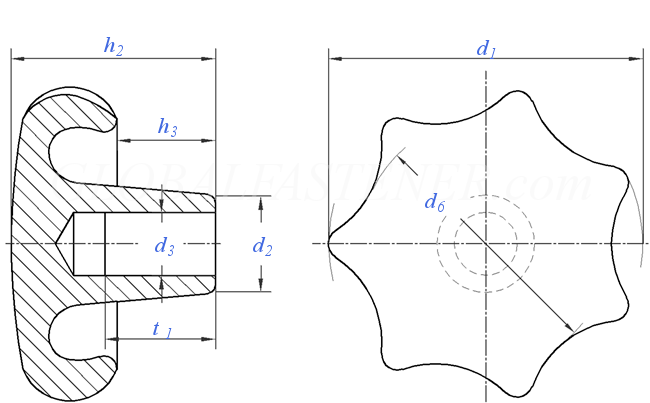

Display drawing:

德标DIN 6336 (C) - 2008 DIN6336 6336DIN Star Grips - Form C
Size
32 40 50 63 80
d1
d2
d3 min=nominal size
max
d6
h2
h3
t1 min
32 40 50 63 80
12 14 18 20 25
6 8 10 12 16
6.012 8.015 10.015 12.018 16.018
26 34 42 52 64
20 25 32 40 50
10 13 17 21 25
12 15 18 22 28
