Slotted Set Screws with Cone Point [Table 5] (A307, SAE J429, F468, F593)

ASME/ANSI B 18.6.2 (T5 cone) - 1998 (R2010)

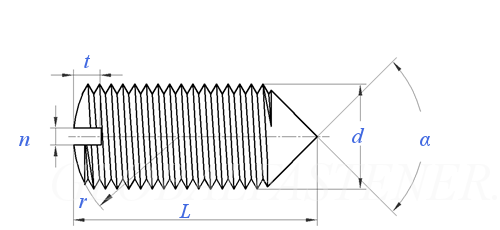

Display drawing:

美标ASME/ANSI B18.6.2 (T5 cone) - 1998 (R2 Slotted Set Screws with Cone Point [Table 5] (A307, SAE J429, F468, F593)

Thread Size
d

0#
0.0600

1#
0.0730

2#
0.0860

3#
0.0990

4#
0.1120

5#
0.1250

6#
0.1380

8#
0.1640

10#
0.1900

r
n	max
	min
t	max
	min
Y ^③

0.060	0.073	0.086	0.099	0.112	0.125	0.138	0.164	0.190
0.014	0.016	0.018	0.020	0.024	0.026	0.028	0.032	0.035
0.010	0.012	0.014	0.016	0.018	0.020	0.022	0.026	0.029
0.020	0.020	0.025	0.028	0.031	0.036	0.040	0.046	0.053
0.016	0.016	0.019	0.022	0.025	0.026	0.030	0.036	0.043
5/64	3/32	7/64	1/8	5/32	3/16	3/16	1/4	1/4

Thread Size
d

12#
0.2160

1/4
0.2500

5/16
0.3125

3/8
0.3750

7/16
0.4375

1/2
0.5000

9/16
0.5625

5/8
0.6250

3/4
0.7500

r
n	max
	min
t	max
	min
Y ^③

0.216	0.250	0.312	0.375	0.438	0.500	0.562	0.625	0.750
0.042	0.049	0.055	0.068	0.076	0.086	0.096	0.107	0.134
0.035	0.041	0.047	0.060	0.068	0.076	0.086	0.097	0.124
0.061	0.068	0.083	0.099	0.114	0.130	0.146	0.161	0.193
0.051	0.058	0.073	0.089	0.104	0.120	0.136	0.151	0.183
5/16	5/16	3/8	7/16	1/2	9/16	5/8	3/4	7/8

①,The extent of rounding or flat at the apex of the cone point shall not exceed an amount equivalent to 10% of the basic screw diameter.
②,When specifying nominal size in decimals, zeros preceding the decimal and in the fourth decimal place shall be omitted.
③,Point angle α shall be 90 deg. (± 2°) for screws of nominal lengths equal to or longer than those listed for variable Y, and 118 deg. (± 2°) minimum for screws of shorter nominal lengths.

Alternative history

ASME/ANSI B 18.6.2 - 1998(R2010) ASME B 18.6.2 - 2020
