Large Rivets - Pan Head Rivets (Manufactured Shape) [Table 6] (A31, A131, A152, A502)

ANSI B 18.1.2 (T6) - 1972 (R2016)

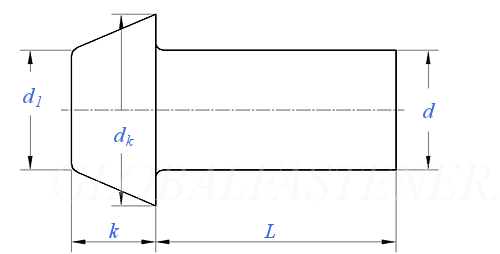

Display drawing:

美标ANSI B18.1.2 (T6) - 1972 (R2016) ANSI1 Large Rivets - Pan Head Rivets (Manufactured Shape) [Table 6] (A31, A131, A152, A502)
Nominal Diameter
d
1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 1-5/8 1-3/4
d max
min
dk max
min
d1 max
min
k max
min
0.520 0.655 0.780 0.905 1.030 1.160 1.285 1.415 1.540 1.665 1.790
0.478 0.600 0.725 0.850 0.975 1.098 1.223 1.345 1.470 1.588 1.713
0.863 1.063 1.278 1.478 1.678 1.894 2.094 2.294 2.494 2.694 2.909
0.769 0.969 1.169 1.369 1.569 1.769 1.969 2.169 2.369 2.569 2.769
0.563 0.688 0.828 0.953 1.078 1.219 1.344 1.469 1.594 1.719 1.859
0.469 0.594 0.719 0.844 0.969 1.094 1.219 1.344 1.469 1.594 1.719
0.381 0.469 0.556 0.643 0.731 0.835 0.922 1.009 1.113 1.201 1.288
0.350 0.438 0.525 0.612 0.700 0.788 0.875 0.962 1.050 1.138 1.225
