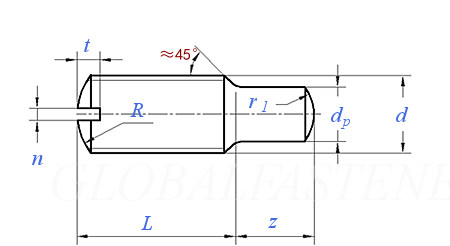

GB /T 829 - 1988 Slotted set screws with dog point


Unit: mm
Screw Thread
d
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
P Pitch
dp max
min
n Nominal Size
max
min
t max
min
z
0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
0.8 1 1.5 2 2.5 3.5 4 5.5 7
0.55 0.75 1.25 1.75 2.25 3.2 3.7 5.2 6.64
0.25 0.25 0.4 0.4 0.6 0.8 1 1.2 1.6
0.45 0.45 0.6 0.6 0.8 1 1.2 1.51 1.91
0.31 0.31 0.46 0.46 0.66 0.86 1.06 1.26 1.66
0.74 0.84 0.95 1.05 1.42 1.63 2 2.5 3
0.56 0.64 0.72 0.8 1.12 1.28 1.6 2 2.4
1~1.5 1~2 1.2~2.5 1.5~3 2~4 2.5~5 3~6 4~8 5~10
