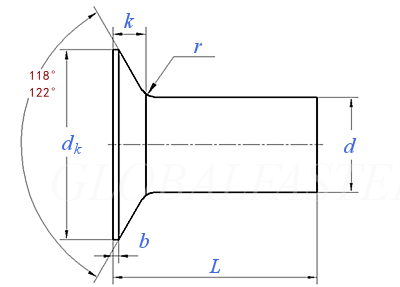

GB 954 - 1986 120° Degree Countersunk Head Rivets


Unit: mm
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
(Φ1.2) Φ1.4 (Φ1.6) Φ2 Φ2.5 Φ3 (Φ3.5) Φ4 Φ5 Φ6 Φ8
d max
min
dk max
min
k
1.26 1.46 1.66 2.06 2.56 3.06 3.58 4.08 5.08 6.08 8.1
1.14 1.34 1.54 1.94 2.44 2.94 3.42 3.92 4.92 5.92 7.9
2.83 3.45 3.95 4.75 5.35 6.28 7.08 7.98 9.68 11.72 15.82
2.57 3.15 3.65 4.45 5.05 5.92 6.72 7.62 9.32 11.28 15.38
0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.4 1.7 2.3
