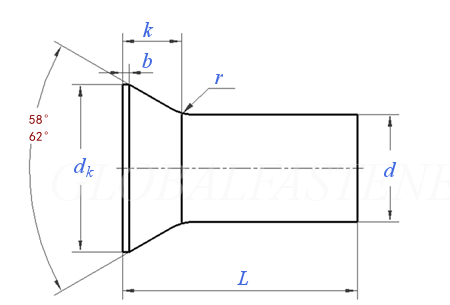

GB 865 - 1986 Countersunk Head Rivets-Black


Unit: mm
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
Φ12 (Φ14) Φ16 Φ18 Φ20 (Φ22) Φ24 (Φ27) Φ30 Φ36
d max
min
dk max
min
k
12.3 14.3 16.3 18.3 20.35 22.35 24.35 27.35 30.35 36.4
11.7 13.7 15.7 17.7 19.65 21.65 23.65 26.65 29.65 35.6
19.6 22.5 25.7 29 33.4 37.4 40.4 44.4 51.4 59.8
17.6 20.6 23.7 27 30.6 34.6 37.6 41.6 48.6 56.2
6 7 8 9 11 12 13 14 17 19
Weight of per 1000 steel products(≈kg)
- - - - - - - - - -
