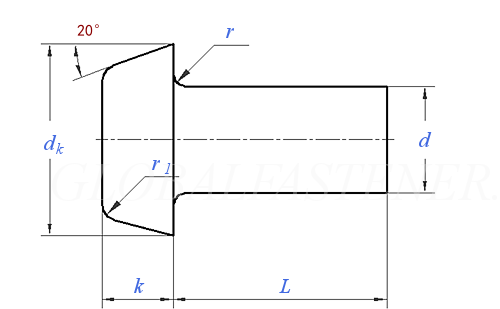

GB 864 - 1986 Cone Head Rivets-Black


Unit: mm
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
Φ12 (Φ14) Φ16 (Φ18) Φ20 Φ22 Φ24 (Φ27) Φ30 Φ36
d max
min
dk max
min
k max
min
r max
12.3 14.3 16.3 18.3 20.35 22.35 24.35 27.35 30.35 36.4
11.7 13.7 15.7 17.7 19.65 21.65 23.65 26.65 29.65 35.6
21 25 29 32.4 35.4 39.9 41.4 46.4 51.4 61.8
19 23 27 29.6 32.6 37.1 38.6 43.6 48.6 58.2
10.5 12.8 14.8 16.8 17.8 20.2 22.7 24.7 28.2 34.6
9.5 11.2 13.2 15.2 16.2 17.8 20.3 22.3 25.8 31.4
0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 0.8 0.8
Weight of per 1000 steel products(≈kg)
- - - - - - - - - -
Similar Standards
1 平锥头铆钉 [GB]
GB 868 - 1986
Cone Head Rivets
2 圆锥头热打实心铆钉 Table 3 [JIS]
JIS B 1214 - 1995
Cheese Head Rivets
3 盘头铆钉(直径1/2至1¾英寸) [BS]
BS 275 (-4) - 1927
Standard Rivet - Pan Head (½ Inch to 1¾ inch diameter)
4 盘头锥颈铆钉(直径1/2至1¾英寸) [BS]
BS 275 (-5) - 1927
Standard Rivet - Pan Head with Tappered Neck (½ Inch to 1¾ inch diameter)
5 圆锥头实心铆钉 [Table 3] [ANSI]
ANSI B 18.1.2 - 1972 (R2016)
Cone Head Rivets (Manufactured Shape)
6 盘头实心铆钉 [Table 6] [ANSI]
ANSI B 18.1.2 - 1972 (R2016)
Pan Head Rivets (Manufactured Shape)
