Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Slotted Raised Countersunk Head Screws with Dog Point

DIN 924 - 2012

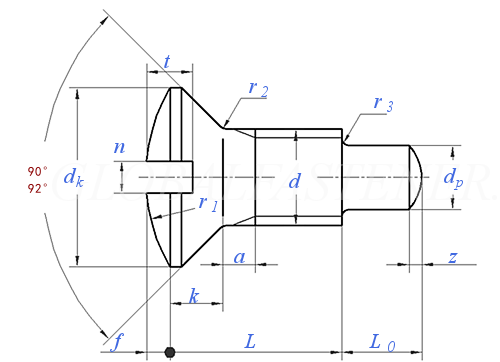

Display drawing:

德标DIN 924 - 2012 DIN924 924DIN Slotted Raised Countersunk Head Screws with Dog Point
Screw Thread
d
M1.4 M1.6 M2 M2.5 M3
P Pitch
a max
dk max=nominal size
min
dp max=nominal size
min
f Nominal Size
max
min
k max
max
n Nominal Size
max
min
r1 ≈
r2 max
r3 max
t max
min
L0 Nominal Size
0.3 0.35 0.4 0.45 0.5
0.6 0.7 0.8 0.9 1
2.6 3 3.8 4.7 5.6
2.35 2.75 3.5 4.4 5.3
0.8 0.8 1.2 1.5 2
0.775 0.775 1.175 1.475 1.975
0.35 0.4 0.5 0.6 0.75
0.55 0.6 0.7 0.8 0.95
0.15 0.2 0.3 0.4 0.55
0.84 0.96 1.2 1.5 1.65
0.59 0.71 0.95 1.25 1.4
0.3 0.4 0.5 0.6 0.8
0.5 0.6 0.7 0.8 1
0.36 0.46 0.56 0.66 0.86
3 3 4 5 6
0.14 0.16 0.2 0.25 0.3
0.1 0.1 0.1 0.1 0.1
0.65 0.8 1 1.2 1.45
0.52 0.65 0.8 1 1.2
0.6, 1 1, 1.6 1, 1.6, 2 1.6, 2, 2.5 1.6, 2, 2.5, 3
