(Non-preferred) dimensions in parentheses.

No.3 Regular Head Plow Bolts (Round, Countersunk, Square Neck) (A307, F468, F593, SAE J 429)

ASME B 18.9 - 2012

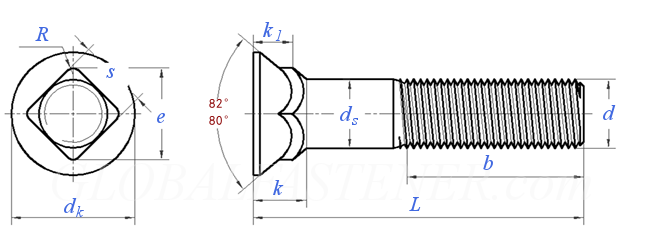

Display drawing:

美标ASME B18.9 - 2012 ASME18.9 18.9ASME No.3 Regular Head Plow Bolts (Round, Countersunk, Square Neck)  (A307, F468, F593, SAE J 429)
Screw Thread
d
5/16 3/8 7/16 1/2 9/16 (5/8) (3/4) (7/8) (1)
d
PP UNC
ds max
min
dk max
Min Sharp
Abs Min With Flat
k max
min
s max
min
e min
R max
0.3125 0.3750 0.4375 0.5000 0.5625 0.6250 0.7500 0.8750 1.0000
18 16 14 13 12 11 10 9 8
0.312 0.375 0.438 0.500 0.592 0.657 0.782 0.938 1.062
0.299 0.360 0.421 0.483 0.544 0.606 0.729 0.853 0.976
0.605 0.708 0.826 0.945 1.045 1.147 1.303 1.512 1.700
0.578 0.671 0.781 0.890 1.000 1.094 1.250 1.469 1.656
0.538 0.624 0.729 0.831 0.924 1.013 1.169 1.344 1.532
0.269 0.312 0.364 0.417 0.461 0.506 0.541 0.626 0.690
0.228 0.262 0.306 0.349 0.389 0.426 0.461 0.526 0.590
0.325 0.387 0.450 0.515 0.578 0.640 0.765 0.906 1.031
0.313 0.375 0.438 0.500 0.563 0.625 0.750 0.875 1.000
0.417 0.491 0.580 0.668 0.732 0.819 0.996 1.160 1.336
0.031 0.047 0.047 0.047 0.078 0.078 0.078 0.094 0.094
