Square Taper Washers for High Prestressed Channels

CNS 4647 - 1983

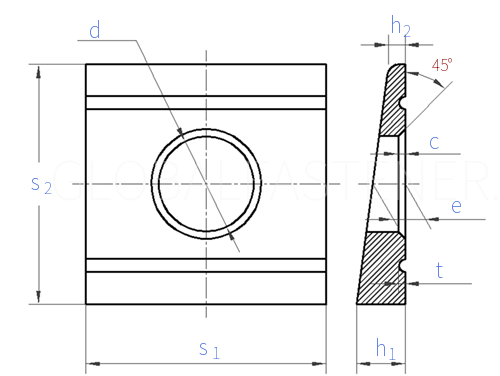

Display drawing:

台湾CNS 4647 - 1983 CNS4647 4647CNS Square Taper Washers for High Prestressed Channels
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Diameter
d
13 17 21 23 25 28
s1
s2
c min=nominal size
max
e ≈
h1
h2
t
per 1000 units≈kg
Applicable screw diameter
26 32 40 44 56 56
30 36 44 50 56 56
1.6 1.6 2 2 2 2.5
1.8 1.9 2.5 2.5 2.5 3
3.7 4.45 5.25 6 6.25 6.25
4.9 5.9 7 8 8.5 (7.4 ①) 8.5 (7.4 ①)
2.5 3 3.5 4 4 (4.6 ①) 4 (4.6 ①)
0.7 0.8 0.9 1 1 1
18.3 31.5 56.3 81.1 128 114
12 16 20 22 24 27
