Click Specification

Unit:mm

Tommy Nuts with Fixed Clamping Bolt

CNS 4660 - 1984

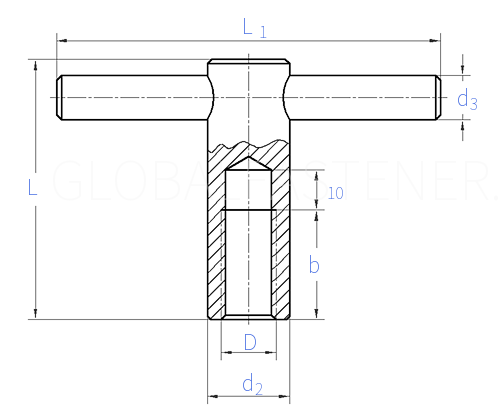

Display drawing:

台湾CNS 4660 - 1984 CNS4660 4660CNS Tommy Nuts with Fixed Clamping Bolt
Thread Size
D
M10 M12 M16 M20
d2
d3
b
L
L1 ≈
18 20 24 30
8 10 12 16
20 25 35 40
60 70 85 95
80 100 120 140
