Slotted Pan Head Screws with Small Head and Full Dog Point

CNS 4359 - 1980

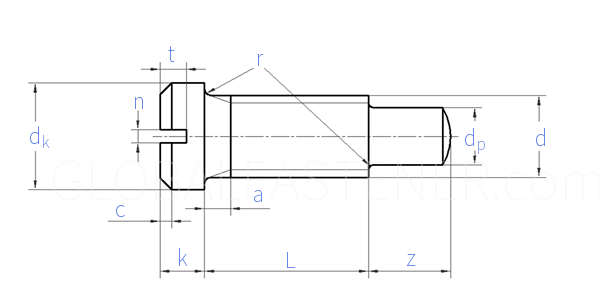

Display drawing:

台湾CNS 4359 - 1980 CNS4359 4359CNS Slotted Pan Head Screws with Small Head and Full Dog Point
Screw Thread
d
M1.6 M1.4 (M1.8) M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10
ds max
min
dk
k
t max
min
n
0.8 0.8 1 1.2 1.5 2 2.5 2.8 3.5 4.5 6 7.5
0.775 0.775 0.975 1.175 1.475 1.975 2.475 2.775 3.47 4.47 5.97 7.464
2 2.3 2.5 2.8 3.5 4 4.5 5.5 6.5 8 10 13
0.9 1 1.1 1.2 1.5 1.8 2 2.4 2.7 3.1 3.8 4.6
0.6 0.7 0.75 0.8 0.95 1.15 1.3 1.5 1.6 1.9 2.4 2.8
0.45 0.5 0.55 0.6 0.75 0.9 1 1.2 1.3 1.5 1.9 2.3
0.25 0.3 0.3 0.3 0.4 0.5 0.5 0.6 0.8 1 1.2 1.6
