Click Specification

Unit:mm

120°Flat Countersunk Head Short Square Neck Bolts

CNS 4419 - 1981

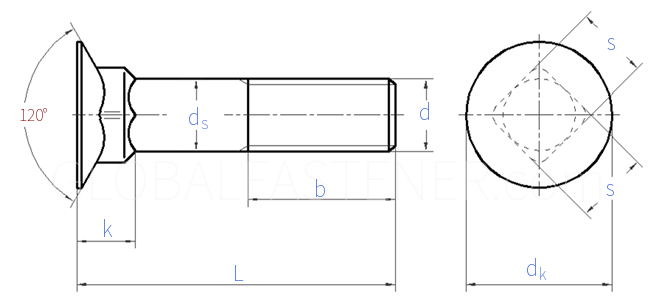

Display drawing:

台湾CNS 4419 - 1981 CNS4419 4419CNS 120°Flat Countersunk Head Short Square Neck Bolts
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M10 M12
P Pitch
b
k
dk
s
1.5 1.75
26 30
8 10.5
19 24
10 12
Weight of per 1000 steel products(≈kg)
- -
