cross recessed trumpet head self drilling tapping screw

JIS B 1125 - 2003

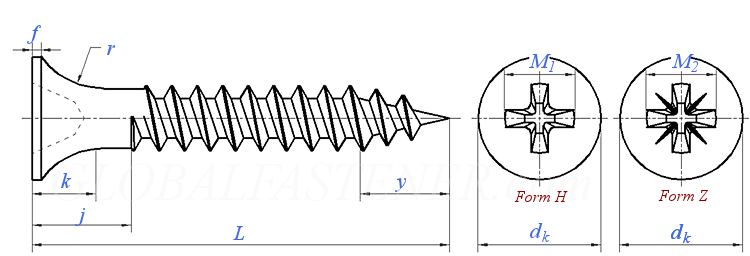

Display drawing:

日标JIS B1125 - 2003 JIS1125 1125JIS cross recessed trumpet head self drilling tapping screw
Nominal Diameter
d
ST3 ST3.5 ST3.8 ST4.2 ST4.5 ST4.8
dk max
min
k
Socket No.
M1
M2
7.3 8.3 8.3 8.7 8.7 9
6.8 7.8 7.8 8.2 8.2 8.5
3.5 4 4 4.5 5 5
2 2 2 2 2 2
4.5 5 5 5 5 5.3
4.3 5 5 5 5 5.1

Alternative history

JIS B 1125 - 1995 JIS B 1125 - 2003 JIS B 1125 - 2015
