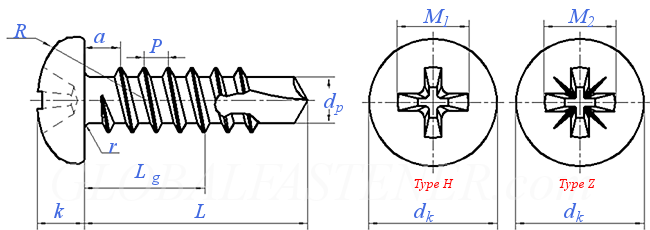

DIN 7504 (N) - 1982 Cross Recessed Pan Head Drilling Screws With Tapping Screw Thread


Unit: mm
德标DIN 7504 (N) - 1982 DIN7504 7504DIN Cross Recessed Pan Head Drilling Screws With Tapping Screw Thread
Nominal Length L Tips:seclect Nominal Length L and get .
Thread Size
ST3.5 (ST3.9) ST4.2 ST4.8 ST5.5 ST6.3
P Pitch
a max
dk max
min
k max
min
r max
R
Socket No.
M1
M2
dp max
Drilling range(thickness)
1.3 1.3 1.4 1.6 1.8 1.8
1.3 1.3 1.4 1.6 1.8 1.8
6.9 7.5 8.2 9.5 10.8 12.5
6.54 7.14 7.84 9.14 10.37 12.07
2.6 2.8 3.05 3.55 3.95 4.55
2.35 2.55 2.75 3.25 3.65 4.25
0.5 0.5 0.6 0.7 0.8 0.9
5.4 5.8 6.2 7.2 8.2 9.5
2 2 2 2 3 3
4.2 4.4 4.6 5 6.5 7.1
3.9 4.1 4.3 4.7 6.2 6.7
2.8 3.1 3.6 4.1 4.8 5.8
0.7~2.25 0.7~2.4 1.75~3 1.75~4.4 1.75~5.25 2~6
Lg
- - - - - -
①,Material: Case hardening steel in accordance with DIN 17210 or heat treatable steel in accordance with DIN 17200 shall be used as the material for drilling screws, at manufaturer's discretion. Other steels of equivalent quality are authorized. Other materials require prior mutual agreement.
