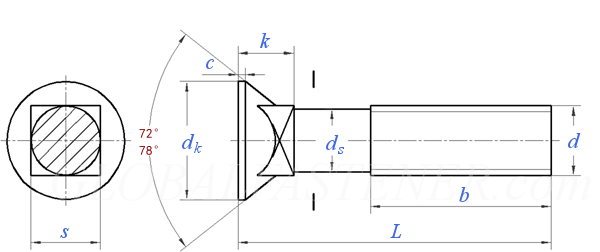

GB 10 - 1976 Countersunk head square neck bolts

Unit: mm

国标GB 10 - 1976 GB10 10GB Countersunk head square neck bolts

Nominal Length L Tips:seclect Nominal Length L and get Weight Thread length.

Thread Size
d

M10

M12

M16

M20

P	Pitch
d_k	Nominal Size
	max
	min
s	Nominal Size
	max
	min
k	Nominal Size
	max
	min
c	max

1.00	1.25	1.50	1.75	2.00	2.50
10.5	14	17	21	28	36
11.05	14.55	17.55	21.65	28.65	36.8
9.95	13.45	16.45	20.35	27.35	35.2
6	8	10	12	16	20
6.3	8.36	10.36	12.43	16.43	20.52
5.84	7.8	9.8	11.76	15.76	19.72
5.7	6.8	8	10.5	12.5	14.5
6.1	7.25	8.45	11.05	13.05	15.05
5.3	6.35	7.55	9.95	11.95	13.95
0.7	0.8	1	1.5	1.5	1.5

Weight of per 1000 steel products(≈kg)

Length of Thread b
