Click Specification

Same specifications, different dimensions for other parts.

Type 1, Style A and B Plain Pattern (Straight Shank) Eyebolts [Table 1] (A489, F541, A473)

ASME/ANSI B 18.15 - 1985 (R1995)

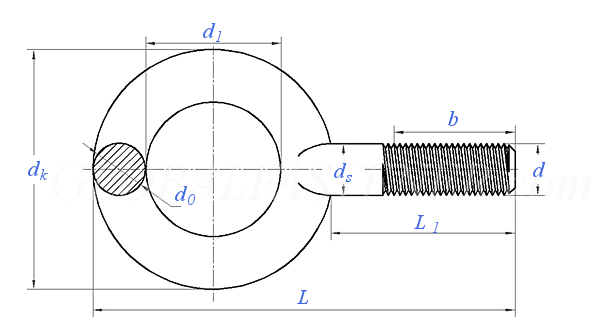

Display drawing:

Thread Size
d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

d_s
L₁	Type A
	Type B
d₁
d_k
d₀
L
b	Type A
	Type B

0.25	0.28	0.31	0.34	0.38	0.41	0.44	0.47	0.50	0.53	0.56	0.59	0.62	0.66	0.75	0.78
1.00	1.06	1.12	1.19	1.25	1.38	1.38	1.50	1.50	1.62	1.62	1.75	1.75	1.88	2.00	2.12
1.00	1.06	1.06	1.13	1.12	1.25	1.13	1.25	1.13	1.25	1.21	1.34	1.31	1.44	1.50	1.62
0.69	0.81	0.81	0.94	0.94	1.06	1.00	1.12	1.12	1.25	1.19	1.31	1.31	1.44	1.44	1.56
1.19	1.19	1.44	1.44	1.69	1.69	1.81	1.81	2.12	2.12	2.25	2.25	2.56	2.56	2.81	2.81
0.19	0.25	0.25	0.31	0.31	0.38	0.34	0.41	0.44	0.50	0.47	0.53	0.56	0.62	0.62	0.69
2.06	2.38	2.44	2.75	2.81	3.19	3.06	3.44	3.50	3.88	3.75	4.12	4.19	4.56	4.69	5.06
0.75	0.75	0.81	0.81	0.88	0.88	1.00	1.00	1.12	1.12	1.25	1.25	1.38	1.38	1.62	1.62
0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.84	0.84	0.94	0.94	1.13	1.13

Thread Size
d

7/8

1-1/8

1-1/4

1-1/2

1-3/4

2-1/2

d_s
L₁	Type A
	Type B
d₁
d_k
d₀
L
b	Type A
	Type B

0.88	0.91	1.00	1.06	1.12	1.19	1.25	1.34	1.50	1.59	1.75	1.84	2.00	2.09	2.50	2.62
2.25	2.38	2.50	2.62	2.75	2.88	3.00	3.12	3.50	3.62	3.75	3.88	4.00	4.25	5.00	5.25
1.75	1.88	1.94	2.06	2.13	2.26	2.38	2.50	2.75	2.87	3.18	3.31	3.62	3.87	4.50	4.75
1.56	1.69	1.69	1.81	1.94	2.06	2.12	2.25	2.44	2.56	2.75	3.00	3.06	3.44	3.81	4.19
3.19	3.19	3.56	3.56	4.06	4.06	4.44	4.44	5.19	5.19	6.00	6.00	6.88	6.88	8.50	8.50
0.75	0.81	0.88	0.94	1.00	1.06	1.09	1.16	1.31	1.38	1.50	1.62	1.75	1.88	2.19	2.31
5.31	5.69	5.94	6.31	6.69	7.06	7.31	7.69	8.56	8.94	9.50	10.12	10.56	11.44	13.19	14.06
1.81	1.81	2.06	2.06	2.31	2.31	2.50	2.50	3.00	3.00	3.19	3.19	3.38	3.38	4.25	4.25
1.31	1.31	1.50	1.50	1.69	1.69	1.88	1.88	2.25	2.25	2.62	2.62	3.00	3.00	3.75	3.75

Alternative history

ASME/ANSI B 18.15 - 1985(R1995) ASME B 18.15Type 1 - 2015
