Click Specification

Unit:mm

Cross Recessed Pan Head Tapping Screws and Plain Washer Assemblies

GB /T 9074.18 - 1988

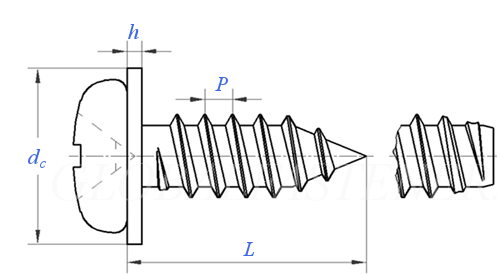

Display drawing:

国标GB /T9074.18 - 1988 GB9074.18 9074.18G Cross Recessed Pan Head Tapping Screws and Plain Washer Assemblies
Size
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5
P Pitch
h Nominal Size
dc Nominal Size
1.1 1.3 1.4 1.6 1.8
0.8 1 1 1 1.6
6 8 9 10 12

Alternative history

GB /T 9074.18(S2) - 1988 GB /T 9074.18(S2) - 2002 GB /T 9074.18(S2) - 2017
